Product Description

Features

• Fully injected polyurethane foaming plastic insulate cabinet for better heat isolation
• Double vacuum glass viewing window, with heating to anti-mist,
• Dual temperature vending zones available, 3~8℃for drinks, 12 ~18 ℃ for snacks,
• Adjustable shelf height and column width for snacks & drinks with different size
• All trays tilts down 45° for easy loading
• 3/8HP refrigeration unit with electronic thermostatic control, with RF-134A refrigerant
• Big inventory space for convenient items supplement



Electronics

• Electronic multiple pricing; Full diagnostic program accessed through keypad
• Full unit and value line by line sales audit
• LCD, Illuminated scrolling message display
• Long life & energy–save LED lighting for the cabinet
• MDB  protocolCompatible with all leading MDB cash or cashless electronic payment equipments
• DEX interface Compatible with EVA DTS,
• Ultra Vending system : Highly Reliable & accurate Vend sensors guaranteed delivery system (holds credit until product is delivered)
• Integral, push button, mains safety circuit breaker/24V DC motors
• Cabinet given temperature adjustable through keypad



Optional:

• Bill acceptor and coin mechanism configured at factory
• Card reader payment device
• Optional for telemetry systems
• Remote Manage Information System Kit
• Customized language display for specific country



Specifications:	M6
Standard Capacity:	153 - 360 packages based on size and shape of package. The vender will deliver most cans, PET bottles in 8 - 20 oz. sizes
Dimensions:	72.4" high x 32.7" wide x 28.7" deep 1900mm x 830mm x 750mm
Shipping Weight:	554 lbs. (empty)/252kg

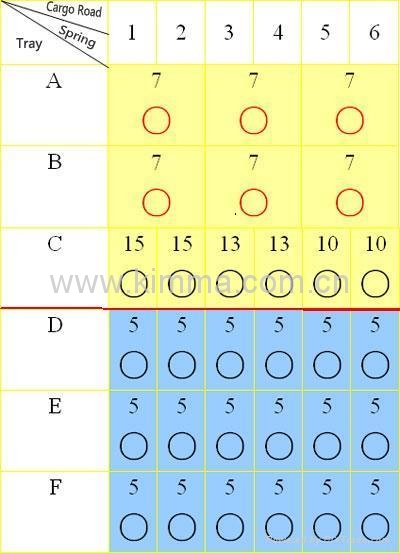

Standard Columns & Selections:	6 Trays with 6 columns per tray / 36 selections
Logic:	MDB Protocol
Power:	115 VAC, 60 Hz, 6 amps, or 220VAC/240VAC, 50Hz 3 amps
Container Loading Q’ty	20pcs/20ft, 40pcs/40ft

Payment Terms︰ TT, LC, OA, Western Union,

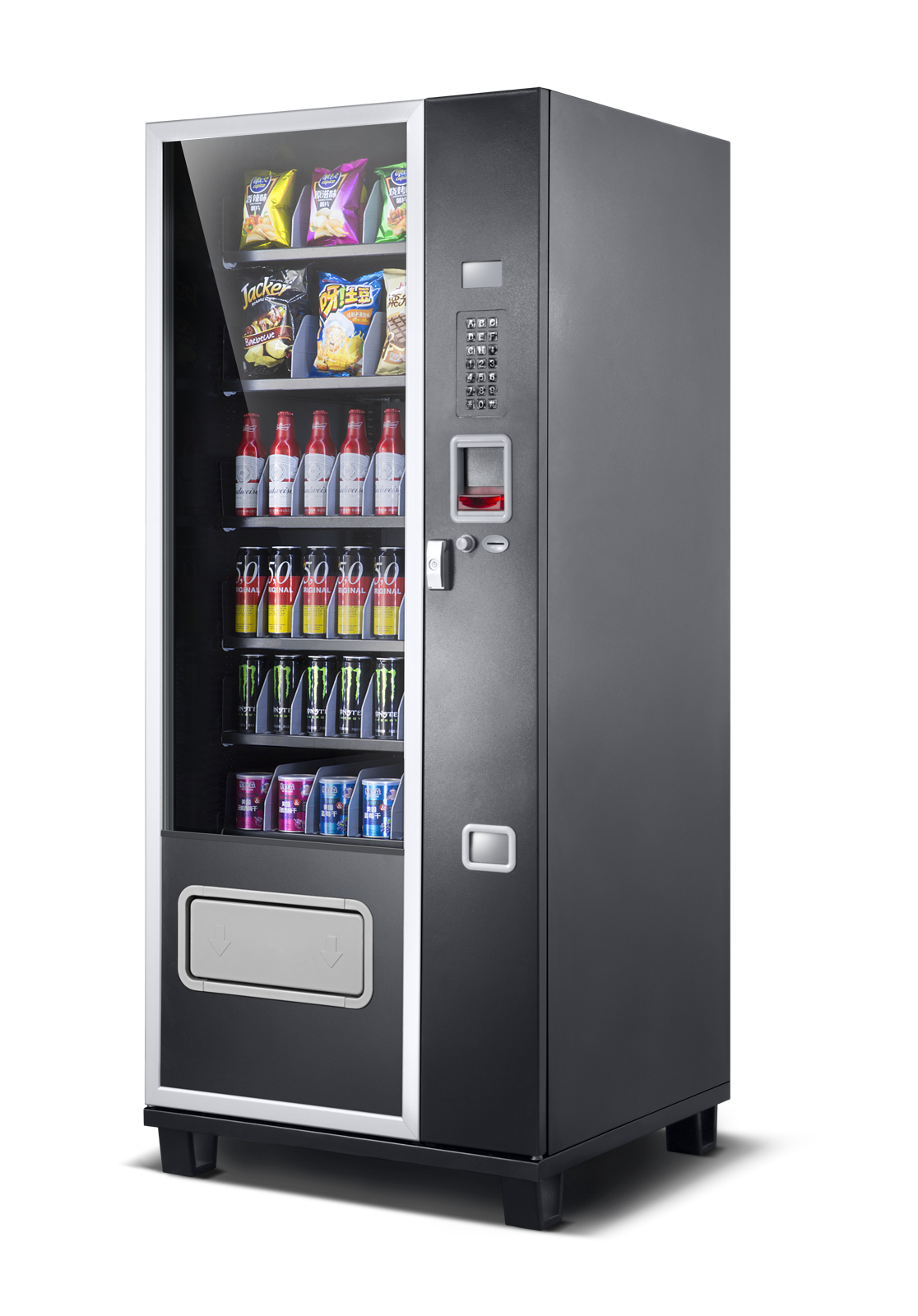

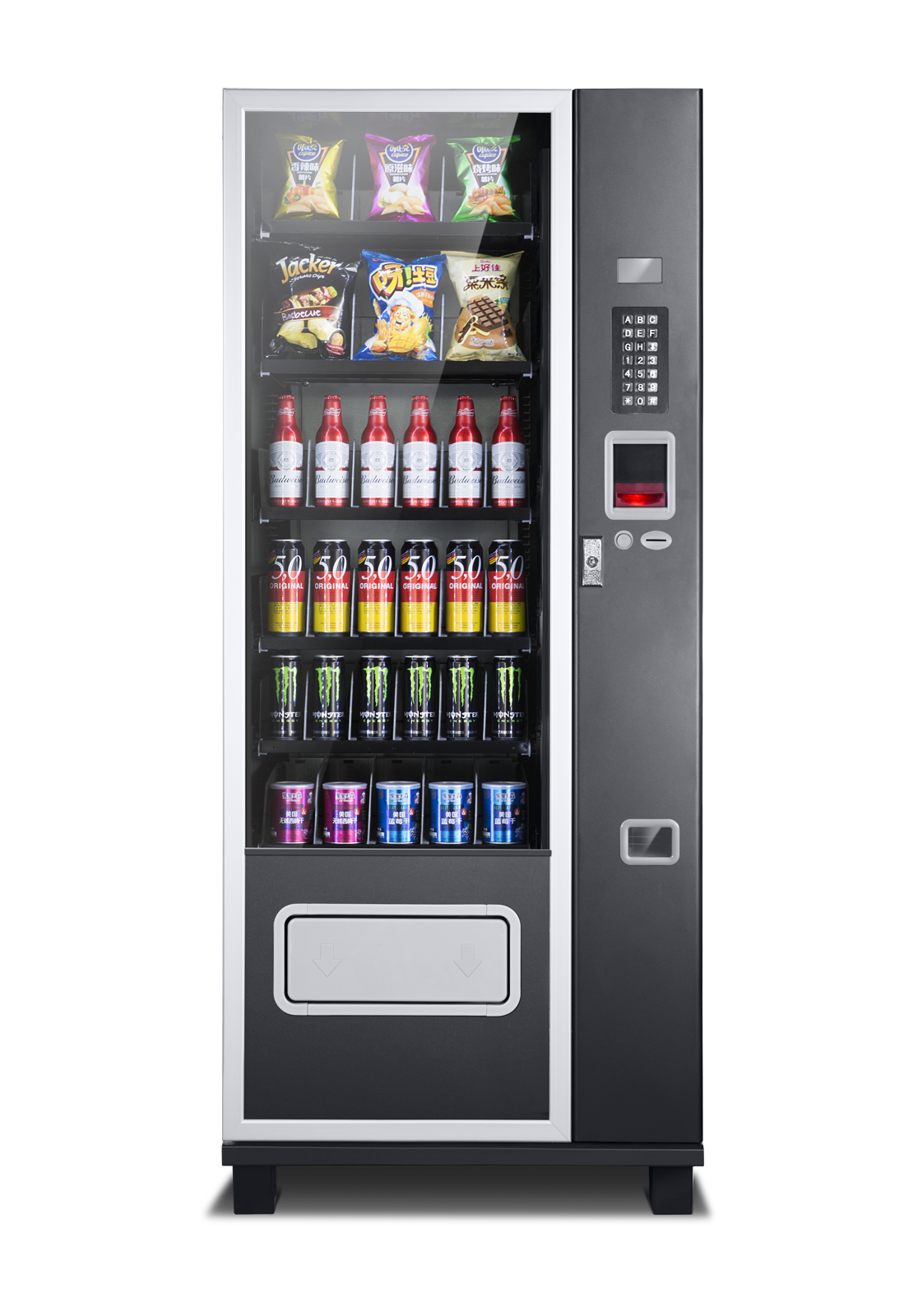

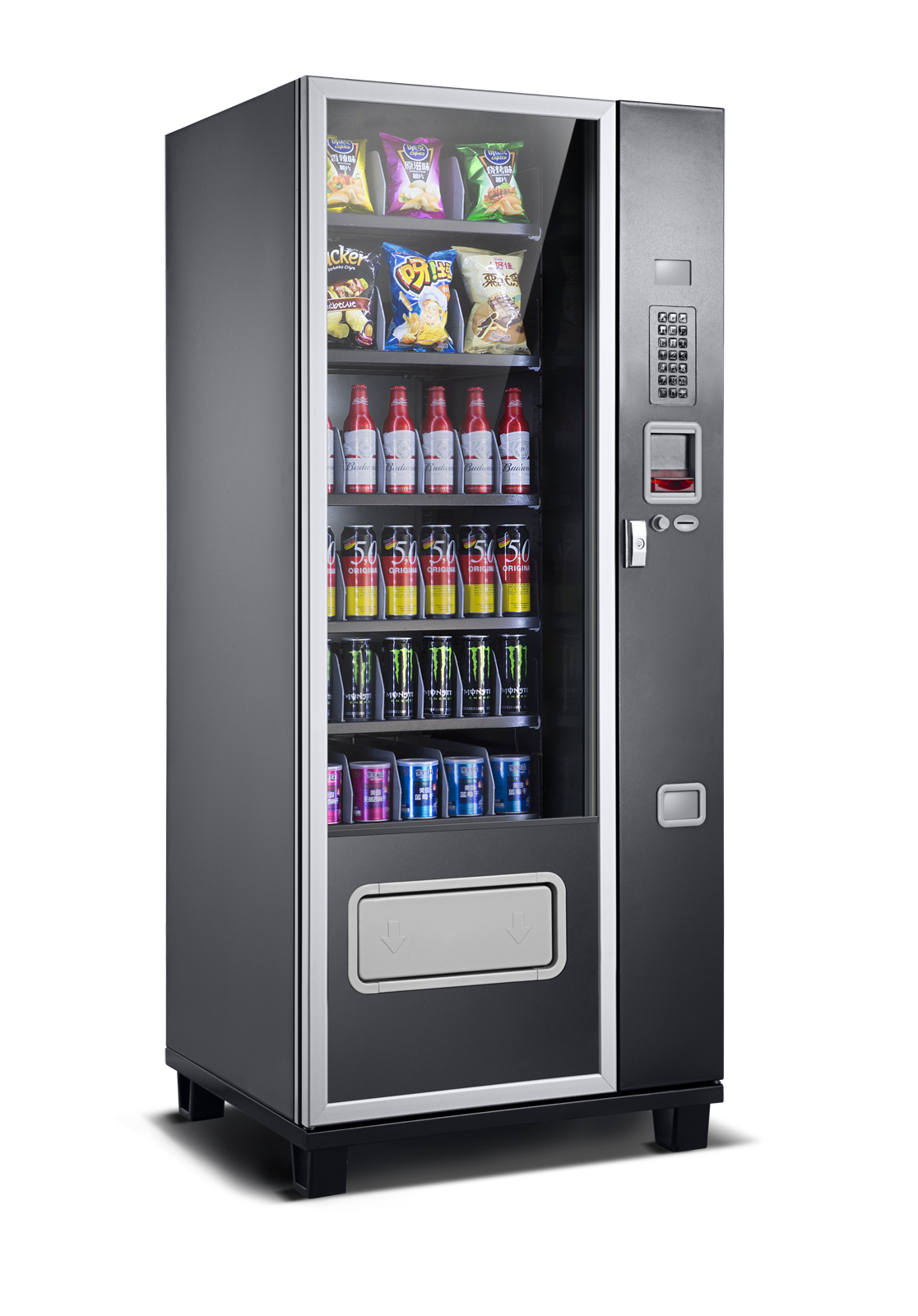

Product Image
